Building a Deluxe Gable Shed is easy with my free videos + support forum

Buy Now $9.95

Photos of sheds built with these Deluxe Gable Plans

Deluxe gable shed with house door and windows on side

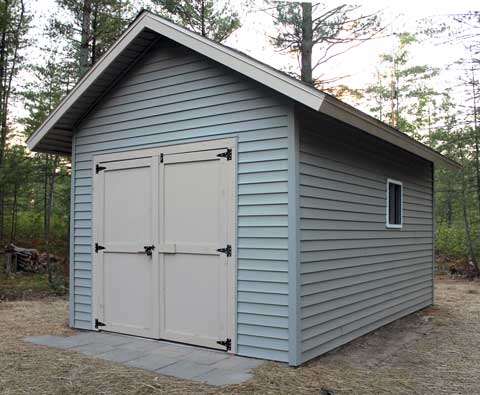

Deluxe gable shed with vinyl siding and double doors on end

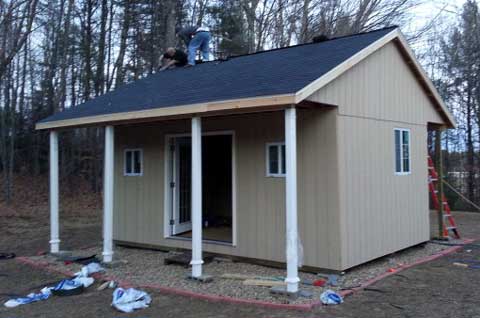

Deluxe gable shed with porches, double doors, and multiple windows

Deluxe gable shed with vinyl siding, end door, and overhead loft door

Buy Now $9.95

Highlights:

31 sizes from 8x4 to 16x32
Widths: 8, 10, 12, 14 & 16 ft
Lengths: From 8 to 32ft
Roof line: Gable
Roof pitch: 3:12, 6:12 or 12:12

Features Of The Deluxe Gable Shed

Roof covering: Asphalt shingles
Roof structure: 2x4 trusses at 16/24 inch on center
Overhang: About 12 inchs
Floor joists: 2x6 at 12 inch O.C.
Wall stud spacing: 2x4 at 16 inch O.C.
Wall framing: Double top and single bottom plates with double corner studs
Floor covering: 3/4 inch plywood
Foundation: Pressure treated skids, concrete slab or floor less foundation
Wall materials: 4x8 sheets of hardboard siding or T-111
Door style: Out swinging shed door
Door location: Can be located any where on any wall
Door options: Single door, double door, wider or narrower door
Door options: Frame for pre-hung doors and windows
Includes 48 inch loft the length of the shed with an optional gable end door

Buy Now $9.95

These plans are best for large or traditional sheds. They can be built in larger sizes because they use double top plates. And the gable roof will more likely match your existing structures.

If you want to build something even larger please take a look at my Garage Plans.

Support Forum + Free Videos

I have a library of shed building videos. They are listed in the relevant sections of the plans with a link.
I have a shed building forum where you can ask me any shed building questions. Either about the plans, or how to use them, or about anything related to the shed building process. You can also get help from other members of the forum who have already build a shed from these plans.

Deluxe Gable Roof Shed Dimension Details

Outside width at base (not including siding and trim): 8, 10, 12, 14, 16. If you need a custom width let me know and I will make the truss calculations for no charge. Will take me about a week.

Length at base (not including siding and trim): 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 28, 32. Custom lengths are easy by adjusting the length of the side wall top/bottom plates and floor band boards.

Wall stud length: Adjust this dimension to make your shed taller or shorter. The following dimensions are based on using a standard wall stud length.

Outside wall height (bottom of floor to top of top plate/bottom of truss): 8ft standard. Can be made shorter or taller up to 10/12ft by adjusting the wall stud length.

Truss Height (top of top plate/bottom of truss to top of truss): Varies with the shed width and roof pitch.

3:12 pitch: 8 wide= 15 5/8, 10 wide= 18 5/8, 12 wide= 21 5/8, 14 wide= 24 5/8, 16 wide= 27 5/8
6:12 pitch: 8 wide= 28, 10 wide= 34, 12 wide= 40, 14 wide= 46, 16 wide= 52
12:12 pitch: 8 wide= 53, 10 wide= 65, 12 wide= 77, 14 wide= 89, 16 wide= 101

Overall height without foundation: Outside wall height plus truss height, plus about 2 inches for roof sheeting and shingle thickness.

Foundation height (bottom of floor to ground level): 4 inches for the skids plus any blocks you use. Typically 6-8 inches total.

Overall height with foundation, from ground level to top of roof: Overall height plus foundation height.

Headroom from top of floor to bottom of truss: 7 ft 6 in.

Inside width between studs: Outside shed width less 7 inches for 2x4 framing. If you frame with 2x6's then less 11 inches. Between studs the inside width is the same as the outside width (without siding or trim).

Overhang is assumed and built into the materials list. Typically you will build with 12 inches on all 4 sides.

Table Of Contents For Deluxe Gable Roof Shed Plans

These are quite detailed plans with lots of instructions, photos, tables, and figures and three roof pitch options. In total the plans are 104 pages long.

If you are a handyman already then you can skip lots of the instructions and just go to the tables and figures. If you are a first time builder you can read and study the instructions until you are confident to get started.

Shed building instructions in 10 steps

General notes
Step 1: Foundation
Step 2: Floor, wood
Step 2a: Floor, concrete
Step 3: Trusses
Step 4: Walls
Step 5a: Prehung doors and windows
Step 5b: Single shed door
Step 5c: Double shed door
Step 6: Raise and attach the walls
Step 7: Open the door
Step 8: Frame and sheet the roof
Step 9: Trim
Step 10: Shingle the roof
Paint and maintenance
Build a loft
Build a ramp
How to contact me

Tables

Table 1: Materials list and cost estimate worksheet
Table 1 notes
Table 2: Dimensions that vary with the length and width of the shed
Table 2 notes
Table 3: Number of pieces for floor joists, wall studs and trusses
Table 4: Nailing schedule
Table 5: Truss dimensions, 3/12, 6/12 & 12/12 pitches
Table 5 notes

Figures

Figure 1.1: Skid spacing
Figure 1.2: Concrete block spacing
Figure 2.1: Floor dimensions
Figure 2.2: Rim joist splice
Figure 2.3: Floor frame complete
Figure 3.1: Truss dimensions
Figure 3.2: Truss jig
Figure 3.3: Extra braces for 14 & 16 wide trusses
Figure 3.4, Finished truss comparison... 6/12 vs 12/12 pitch
Figure 3.5: Gable end blocking
Figure 3.6: Frame a loft door into the gable end
Figure 3.7: Template for 6/12 pitch
Figure 3.8: Template for 3/12 pitch
Figure 4.1: Wall dimensions
Figure 4.2: Wall layout
Figure 4.3: End wall framing
Figure 4.4: Side wall framing
Figure 5a: Frame for pre hung doors and windows
Figure 5b.1: Outer foor frame
Figure 5b.2: Inner foor frame
Figure 5b.3: Complete single door frame
Figure 5b.4: Nailing sequence
Figure 5b.5: Chalk lines, cut lines
Figure 5b.6: Inner door trim
Figure 5b.7: Complete door trim showing 7/16" gap between inner and outer trim
Figure 5c.1: Inner door uprights, siding breaks, and cripple stud spacing
Figure 5c.2: Inner door spacers and uprights
Figure 5c.3: Door trim spacing and underlying cut lines
Figure 5c.4: Complete door trim
Figure 8.1: Roof framing details
Figure 8.2: End wall & truss cross section showing truss offset

Buy With Confidence With A 30 Day Money Back Guarantee On All Shed And Garage Plans

Deluxe Gable Roof Shed Plans With

Buy Now $9.95

Money Back Guarantee

I offer a 30 day money back guarantee if buy these plans and find that they are not suitable for you.

Just send me an email and I will give you a refund within 2-3 days (the next time I log on).

See And Compare These Plans To My Other Shed And Garage Plans

Buy Now $9.97
- OR -
Get More Details

Tall Gambrel Barn Shed Plans (With Optional Loft + Overhang)

Includes all 31 sizes from 8x4 to 16x32
8, 10, 12, 14, & 16 ft widths
12 inch overhang (option)
Crows Beak (option)
Single and double doors
Floor studs 12 inch O.C.
Wall studs 16 inch O.C.
Roof trusses 16 or 24 inch O.C.
Double top plates
Includes full width loft
Frame for pre hung doors and windows

Buy Now $7.95
- OR -
Get More Details

Regular Gable Roof Shed Plans (The Easiest & Cheapest To Build)

Includes all 21 sizes from 8x4 to 12x20
3:12, 4:12, & 5:12 roof pitch options
2, 3 1/2, & 5 1/2 inch overhang options
Single and double doors
Single top plates
Wall studs and roof trusses 24 inch O.C.
One of the cheapest and easiest sheds to build

Buy Now $11.95
- OR -
Get More Details

Lean-To Style Single Slope Plans (With Porch Option)

Includes all 45 sizes from 4x4 to 12x20
1.5:12 roof pitch
2, 4-6, & 12 inch overhang options
4 height options from 60 inches to 12 ft
Any custom length, width or height
Single and/or double doors
Floor studs 16 inch O.C.
Wall studs 16 inch O.C.
Rafters 16 inch O.C.
Single top plates
Instructions and details to build a porch
Bike shed ideas
Frame for pre hung doors and windows

Buy All 4 Shed Plans For Only $27.95

Can't decide which style shed plans to buy? Then buy all 4 shed plans in all sizes for only $27.95. That is a savings of over 29%!

Buy Now $27.95

Buy All 4 Shed Plans

Can't decide which style shed plans to buy? Then buy all 4 shed plans in all sizes for only $27.95.

Regular gable roof shed plans in all 21 sizes
Deluxe gable roof shed plans in all 31 sizes
Tall (gambrel) barn shed plans in all 31 sizes
Lean-to style (single slope) shed plans in all 45 sizes

That is a savings of over 29%!

Need An Even Larger Shed?

Then consider my garage plans which go up to 24ft x 40ft and include full size 24x36 inch blueprints.

Buy Now $29.97
- OR -
Get More Details

Garage Plans With Blueprints

These garage plans give you step by step framing instructions, complete with diagrams and dimensions. They are designed for the first time garage builder with little or no construction experience.

Includes sizes: 1 car (14x24), 2 car (24x24), 3 car (24x32/32x24), 4 car (24x40)
Wall height: 8ft standard, 9-12ft optional
Stud spacing: 16 inch on center
Stud size: 2x4 standard, 2x6 optional
Roof style: Gable
Roof covering: Shingles standard, optional: metal, rolled, built up
Trusses: Manufactured, available at most any lumber yard or truss company
Maximum overhead door opening height: 7 ft (with 8 ft wall height), up to 11 ft (12 ft wall height)
Floor: Monopour concrete slab standard, optional: wood, stem wall with concrete slab
Matching blueprints: Necessary for obtaining building permits

Buy With Confidence With A 30 Day Money Back Guarantee On All Shed And Garage Plans

Buy Your Shed And Garage Plans Here

All shed and garage plans include multiple sizes.

$7.95 Gable Shed Plans in all 21 sizes

$9.95 Deluxe Gable Shed Plans in all 31 sizes

$9.97 Gambrel Barn Shed Plans in all 31 sizes

$11.95 Lean-To Style (Single Slope) Shed Plans in all 45 sizes

$27.95 All Four Shed Plans In All Sizes

$29.97 Garage Plans With Blueprints

Contact

Feel free to contact me by email if you have any pre or post sale questions.
